Intake & Turbocharging System

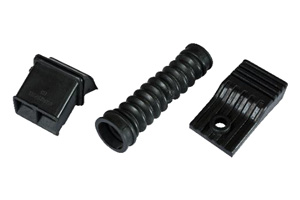

Molded and Injection-Molded Products

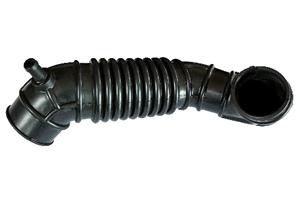

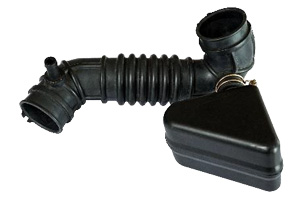

Used in the automotive engine intake system, connecting the air filter, intake manifold, crankcase, and other major components. It delivers filtered clean air and crankcase blow-by gas to the intake manifold, supplying air for engine combustion.
Product Parameters
| Spec (ID, mm) | Material | Low Temp (°C) | High Temp – long (°C) | High Temp – short (°C) |
|---|---|---|---|---|
| 10~100 | NBR+PVC | -40 | 100 | 125 |
| 10~100 | AEM | -40 | 160 | 175 |
| 10~100 | ECO | -40 | 125 | 150 |
| 10~100 | EPDM | -40 | 110 | 130 |

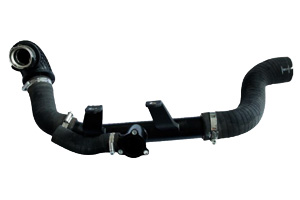

Turbocharger Pipe & Assembly
Used in the automotive engine intake system, connecting the turbocharger, intercooler, intake manifold, and other major components. It delivers hot compressed air from the turbocharger to the intercooler for cooling, then on to the intake manifold, supplying sufficient air to the engine to increase combustion efficiency.
Product Parameters
| Spec (ID, mm) | Layer 1 | Layer 2 | Layer 3 | Layer 4 | Low Temp (°C) | High Temp – long (°C) | High Temp – short (°C) | Remarks |
|---|---|---|---|---|---|---|---|---|
| 30~70 | NBR | AR cord | CR | — | -40 | 100 | 125 | — |
| 30~70 | CM | AR cord | CM | — | -35 | 100 | 125 | — |
| 30~70 | ECO | AR cord | ECO | — | -40 | 125 | 150 | — |
| 30~70 | ACM | AR cord | ACM | — | -40 | 160 | 175 | — |
| 30~70 | AEM | AR cord | AEM | — | -40 | 160 | 175 | — |
| 30~70 | HT-ACM | AR cord | HT-ACM | — | -40 | 175 | 190 | — |
| 30~70 | HT-AEM | AR cord | HT-AEM | — | -40 | 175 | 190 | — |
| 30~70 | VMQ | AR cord | VMQ | — | -40 | 200 | 230 | — |
| 30~70 | FKM | VMQ | AR cord | VMQ | -40 | 200 | 230 | — |
| 16~100 | ACM | Mesh fabric | ACM | — | -40 | 160 | 175 | — |
| 16~100 | VMQ | Mesh fabric | VMQ | — | -40 | 200 | 230 | — |
| 16~100 | FMVQ | Mesh fabric | VMQ | — | -40 | 200 | 230 | — |
