Braking System

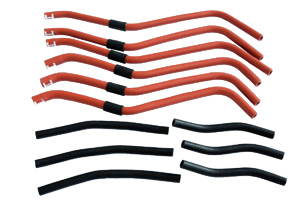

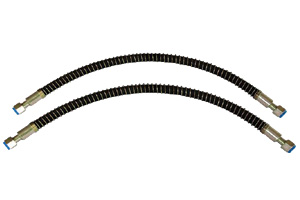

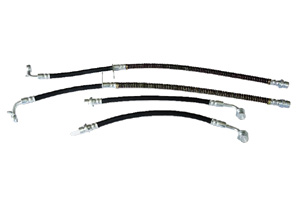

Brake Hose Assembly
Used in automotive hydraulic braking systems, vacuum braking systems, and air braking systems. Manufactured in accordance with GB 16897.
Product Parameters
| Spec (ID, mm) | Layer 1 | Layer 2 | Layer 3 | Low Temp (°C) | High Temp – long (°C) | High Temp – short (°C) | Remarks |
|---|---|---|---|---|---|---|---|
| 8~16 | PA11 | — | — | -40 | 125 | 150 | — |
| 8~16 | PA12 | — | — | -40 | 125 | 150 | — |
| 8~16 | PA612 | — | — | -40 | 150 | 170 | — |
| 3~25 | NBR | AR cord | CR | -40 | 100 | 125 | — |
| 3~25 | ECO | AR cord | ECO | -40 | 125 | 150 | — |
| 3~25 | EPDM | AR cord | EPDM | -40 | 120 | 130 | — |
