Power Steering System

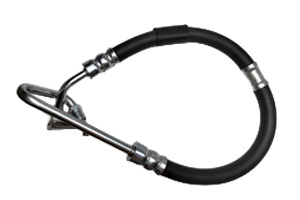

Power Steering Hose & Assembly
Used in the automotive steering system, connecting the steering reservoir, steering gear, and steering pump, among other key components. By transmitting power-steering fluid at different pressures, it controls the power-steering unit, thereby increasing the steering force delivered from the steering wheel.
Product Parameters
| Spec (ID, mm) | Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Low Temp (°C) | High Temp – long (°C) | High Temp – short (°C) | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| 8~16 | ACM | AR cord | ACM | — | — | -40 | 160 | 175 | Medium-pressure end |
| 8~16 | AEM | AR cord | AEM | — | — | -40 | 160 | 175 | Medium-pressure end |
| 8~16 | CSM | AR cord | CSM | — | — | -35 | 100 | 130 | Medium/low-pressure end |
| 8~16 | CSM | PA cord | NBR | PA cord | CSM | -35 | 100 | 130 | High-pressure end |
| 8~16 | NBR | AR cord | CR | — | — | -40 | 100 | 125 | High-pressure end |
| 8~16 | NBR | PA cord | NBR | PA cord | CR | -35 | 100 | 125 | High-pressure end |
